Structural fastening carries exceptionally high stakes across every commercial and industrial project. Selecting an incorrect anchor type does more than disrupt project timelines. It introduces severe liability and elevates catastrophic structural failure risks. Contractors and engineers constantly navigate a fundamental debate on the job site. You must weigh the immediate load capacity and simplicity of mechanical expansion against the stress-free bonding and high-load ceiling of chemical adhesive anchors.
Both fastening systems offer distinct engineering advantages. A Mechanical Anchor Bolt delivers speed and reliable torque-controlled friction. Meanwhile, chemical resins provide unmatched versatility in compromised base materials. We developed this guide as an engineering-focused evaluation framework. It helps specifiers and builders make evidence-based, compliant decisions tailored to specific job site conditions. By understanding these structural nuances, you can ensure absolute safety, maximize labor efficiency, and maintain strict regulatory compliance.
Installation Speed vs. Ultimate Strength: A mechanical anchor bolt provides immediate load-bearing capacity, while chemical anchors require curing time but offer superior ultimate load capacities in compromised concrete.
Base Material Constraints: Mechanical anchors induce expansion stress, making them unsuitable for close edge distances. Chemical anchors exert no expansion stress, allowing for tighter spacing.
Environmental Sensitivity: Chemical anchors are highly susceptible to poor hole cleaning and extreme temperatures during installation. Mechanical anchors are largely unaffected by weather.
Cost Efficiency: While unit costs favor mechanical anchors, total installed cost depends on labor time, drill bit wear, and required performance approvals.
Understanding exactly how fasteners transfer stress into concrete forms the foundation of proper structural design. These two systems utilize entirely different physical principles to secure loads.

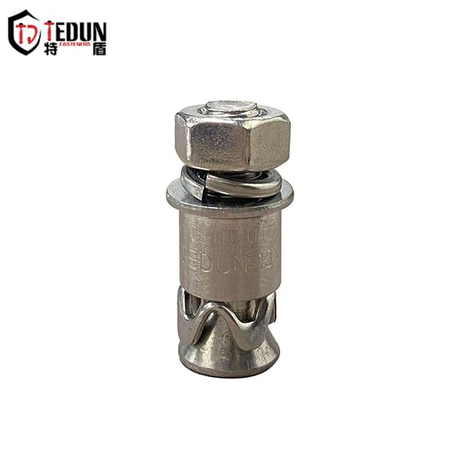

A mechanical fastening system works by physically expanding against the surrounding borehole wall. When you tighten the nut, the mechanism pulls a tapered cone into an expansion clip. This action wedges the clip outward. It transfers the applied load through direct friction and mechanical interlock against the concrete. This torque-controlled expansion provides high reliability. You can physically verify the installation by checking the applied torque wrench values.
Chemical anchoring relies on synthetic adhesive resins, typically epoxies or vinylesters. Installers inject this resin to fill the annular gap between the steel stud and the concrete. The chemical compound bonds the threaded rod directly to the microscopic pores of the concrete. This creates an uninterrupted bonding matrix along the entire embedment depth. It distributes the load evenly rather than concentrating it at a single expansion point.
To set an objective, engineering-focused baseline, you must understand how these systems fail under extreme stress. Structural engineers typically evaluate three primary failure scenarios:
Concrete Cone Failure: The concrete base material fractures and pulls away in a cone shape. This occurs when the anchor's tensile load exceeds the concrete's tensile strength.
Pull-Out Failure: The anchor loses grip and slips out of the hole. For mechanical systems, this means friction loss. For chemical systems, it indicates bond failure.
Steel Breakage: The embedded steel rod or bolt snaps. This indicates the concrete and the anchor grip both outperformed the steel's yield strength.
Anchor Failure Modes Overview
Failure Type | Mechanical Anchors | Chemical Anchors | Primary Cause |
|---|---|---|---|
Concrete Breakout | Common in shallow embedment | Rare, transfers stress deeper | Overloading base material strength |
Pull-Out / Bond Slippage | Friction clip failure or slipping | Poor hole cleaning during install | Improper installation technique |
Steel Yielding | Occurs in high-grade concrete | Most frequent failure mode | Load exceeds fastener metallurgy |
Real-world job sites subject fasteners to unpredictable forces. A static laboratory test rarely mirrors the complex conditions found in active industrial environments. We must evaluate how these systems handle varying load types and base material conditions.
For standard construction applications, a Heavy duty mechanical anchor bolt delivers exceptional performance. These fasteners handle immense static shear and tensile loads. They easily support structural steel columns, heavy racking, and stationary equipment. They remain highly dependable as long as the load remains constant.
However, dynamic loads present a different challenge. Seismic events, wind sway, and vibrating heavy machinery introduce cyclic loading. These forces can cause mechanical clips to micro-slip over time. Chemical anchors demonstrate clear superiority in these dynamic scenarios. The continuous adhesive bond dampens vibrations effectively. The resin absorbs the shock, preventing the steel from rattling loose within the borehole.
Modern building codes, such as ACI 318 and ICC-ES guidelines, strictly govern anchoring in concrete. Concrete naturally develops microscopic cracks over its lifespan. Standard mechanical fasteners often struggle in the tension zone where these cracks widen. If a crack propagates through a drilled hole, standard friction clips lose their grip.
Chemical anchors adapt well to cracked concrete because the resin fills the void completely. When projects require mechanical solutions in cracked zones, standard wedge options fall short. Instead, engineers must specify specialized heavy-duty undercut anchors. These advanced fasteners mechanically lock into a pre-drilled bell cavity, guaranteeing performance even if the concrete cracks significantly.
Theoretical strength means nothing if site conditions prevent proper installation. The surrounding environment dictates the success or failure of any fastening system.
Every fastener creates an internal stress field within the concrete. We call this the "expansion cone" effect. When you torque a mechanical fastener, it pushes outward with immense force. Because of this induced stress, installers cannot place these fasteners too close to concrete edges. They also cannot group them too tightly together. Doing so risks overlapping the stress cones, which causes the concrete to crack or spall catastrophically.
Chemical anchoring solves edge-distance problems entirely. Because adhesive resins cure rather than expand, they exert zero expansion stress during installation. This unique property allows contractors to place anchors much closer to the slab edge. It also permits dense grouping for heavy baseplates.
Human error poses a significant threat to structural integrity. Both systems require precision, but they harbor different vulnerabilities.
Hole Cleaning Risk: Chemical anchors carry a critical vulnerability. If installers do not thoroughly brush and blow out the concrete dust, the chemical resin bonds to the dust instead of the solid concrete wall. This single oversight can reduce load capacity by up to 50%. Strict adherence to cleaning protocols remains non-negotiable.
Weather & Temperature: Weather heavily influences installation choices. Installers can reliably set Mechanical anchors in freezing conditions, extreme heat, or even pouring rain. Chemical resins behave differently. They possess strict temperature thresholds for both dispensing and curing. Cold weather drastically thickens the resin and extends curing times.
Curing Downtime: Time dictates job site profitability. Mechanical bolts offer immediate gratification. Installers can torque them and apply structural loads instantly. Chemical solutions demand curing downtime. Depending on the ambient temperature, this can range from 30 minutes to a full 24 hours before you can safely apply a load.
Procurement teams often focus solely on the initial unit price. However, the true financial impact of a fastening system extends far beyond the hardware invoice. You must evaluate the holistic installation expenses.
If you look exclusively at material price tags, standard Heavy duty concrete anchor bolts are significantly cheaper per unit. They arrive fully assembled and ready to install. Conversely, a chemical system requires multiple components. You must purchase the resin cartridges, specialized mixer nozzles, screen tubes for hollow masonry, and the threaded rods themselves. This complex bill of materials drives up initial procurement costs.
The installation process heavily influences the final labor budget. Chemical installations require specialized dispensing tools and precise hole-cleaning brushes. The multi-step process—drilling, brushing, blowing, injecting, and setting—consumes significantly more labor time. Furthermore, the mandatory downtime associated with chemical curing forces work crews to pause operations or relocate to different tasks. Mechanical systems bypass these delays entirely, offering rapid, single-step installation.
You must also evaluate long-term material survival. Moisture inevitably penetrates concrete structures. When water reaches bare steel, corrosion begins. Chemical encapsulation inherently protects the embedded portion of the steel rod. The waterproof resin seals the metal away from moisture and oxygen. This protective barrier potentially lowers long-term maintenance costs in corrosive environments, making adhesives highly attractive for coastal or chemical plant applications.
Choosing between these methodologies requires a clear, objective framework. We categorize the decision process based on common engineering scenarios.
You are dealing with standard static loads in guaranteed uncracked concrete slabs.
Your project requires immediate load application, demanding zero installation downtime.
The job site experiences extreme cold, heavy rain, or generally wet conditions during the installation phase.
You face high-volume installations where budget constraints and speed are prioritized, and edge distances remain generous.
The application involves high-vibration, seismic activity, or dynamic cyclic load scenarios.
Your structural design dictates exceptionally close edge distances or tight anchor grouping.
You are working with compromised, porous, or entirely unknown base materials, such as hollow block or aged brick.
The environment involves heavy moisture where you want the resin to act as an anti-corrosion barrier.
Fastening System Selection Chart
Project Condition | Recommended System | Reasoning |
|---|---|---|
Immediate structural loading | Mechanical Fasteners | Zero curing time required. |
Seismic / High Vibration | Adhesive Resins | Dampens shock, prevents micro-slipping. |
Close edge proximity | Adhesive Resins | Exerts zero expansion stress on concrete. |
Sub-freezing temperatures | Mechanical Fasteners | Unaffected by cold; no chemical freezing risk. |
Do not finalize your structural designs based on assumptions. We recommend requesting official technical data sheets (TDS) for any product you consider. Arrange a supervised pull-test on your actual job site to verify base material capacity. When facing complex load calculations, consult with structural support teams. Discussing your specific needs with a Mechanical Anchor Bolt specialist guarantees you select the safest, most compliant option for your blueprint.
Neither fastening system stands universally superior. The correct choice entirely dictates project safety, regulatory compliance, and overall labor efficiency. Mechanical fasteners deliver unmatched speed, cost-effective unit pricing, and immediate load capacity. Chemical resins offer unparalleled strength in compromised concrete, excel under dynamic vibration, and solve complex edge-distance challenges.
Strict adherence to the manufacturer's printed installation instructions (MPII) remains just as critical as the selection process itself. Even the highest-rated structural fastener will fail if an installer ignores cleaning protocols or torque specifications. Prioritize training alongside your procurement.
We invite you to submit your specific project parameters to our engineering team today. Whether you need expert selection assistance, a detailed quote, or comprehensive engineering submittal support, our specialists stand ready to ensure your next build remains structurally flawless.
A: Yes, but only specifically rated mechanical anchors. You must use heavy-duty expansion or specialized undercut anchors with proper ICC-ES or ETA approvals explicitly designated for cracked concrete. Standard wedge anchors may slip or fail entirely in tension zones as cracks widen.
A: Capacity ranges from a few hundred to tens of thousands of pounds. Ultimate capacity depends entirely on embedment depth, the concrete's compressive strength (PSI), and the anchor's diameter. You should always point engineers to specific manufacturer load tables to verify exact shear and tensile limits.
A: Generally, yes, at peak capacities. They bond along the entire embedment depth rather than relying on a single friction point. However, this superior strength assumes flawless installation. If you fail to clean the hole perfectly, a chemical anchor's strength drops drastically below mechanical alternatives.
A: Standard wedge anchors act permanently. You must cut them off flush with the surface or drive them deeper into the concrete. However, concrete screw anchors and certain drop-in anchors do offer removability. Chemical anchors cure permanently and cannot be removed without core-drilling the surrounding concrete.
