Structural fastening carries incredibly high stakes on any construction site. Choosing the wrong anchor often leads to catastrophic concrete blowouts, failed building inspections, or dangerous load failures. You cannot afford to guess when securing heavy structural materials to masonry.
Contractors constantly face a difficult dilemma during the planning phase. You must choose between the permanent, high-tension hold of a traditional expansion anchor and the fast, edge-friendly installation of a modern screw-style fastener. Each mechanism reacts differently under sheer stress, vibration, and edge proximity. Getting this choice right ensures structural integrity while keeping labor schedules on track.
This guide delivers an evidence-based comparison of load capacities, installation mechanics, and compliance criteria. You will discover exactly how to evaluate your base material and navigate tight space limitations. Ultimately, we will help you finalize your procurement decisions and secure your builds with absolute confidence.
Wedge anchors provide superior holding power for permanent, heavy-duty applications in solid concrete but require strict adherence to edge-distance limitations.
Concrete anchor bolts (screw anchors) cut their own threads, allowing for temporary installations, faster labor, and closer edge-spacing without spalling.
Selecting the right fastener depends strictly on base material integrity, required embedment depth, and ICC-ES code approvals for seismic or cracked concrete applications.
Accurate sizing and strict adherence to hole-tolerance guidelines are non-negotiable for both anchor types.
Wedge anchors rely entirely on mechanical friction to secure loads. They feature a threaded stud, a conical end, and a specialized expansion clip. You drill a hole, insert the anchor, and tighten the nut. Applying torque pulls the conical end upward. This action forces the expansion clip outward against the rough walls of the drilled concrete hole. The friction created here is immense. It locks the fastener permanently into the base material. You cannot reverse this process easily once the clip expands.

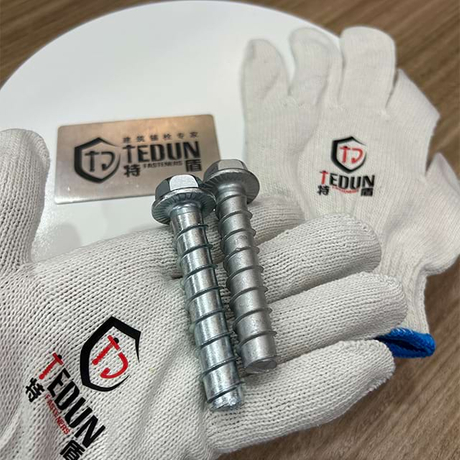

Screw-style fasteners operate on a completely different physical principle. A Concrete Anchor Bolt physically cuts its own threads deep into the concrete. It works much like a wood screw entering a timber joist. As you drive it into the hole, the hardened steel threads carve grooves into the masonry. This mechanical interlock distributes the heavy load evenly along the entire embedded length of the fastener. It reduces localized stress points and creates a highly secure, vibration-resistant connection.
You must understand where these fasteners fit within the broader spectrum of hardware. Exploring various Types of concrete anchors helps isolate the best solution for your project. We generally divide these into three distinct categories:
Chemical/Epoxy Adhesives: These offer unmatched strength but require mixing, precise curing times, and dry environments.
Light-Duty Sleeve Anchors: These expand like wedge anchors but handle much lighter shear loads. They work well for hollow block but fail under structural tension.
Mechanical Heavy-Duty Solutions: Wedge and screw anchors fall here. They provide immediate load capacity. You do not need to wait for epoxy to cure. They support massive structural weights instantly upon installation.
Your base material dictates your anchor choice before you even look at load charts. Wedge anchors require solid, uncracked concrete to function properly. If you use them in brick, mortar, or hollow CMU block, the expansion force will shatter the brittle material. Conversely, screw-style anchors offer incredible versatility. Engineers frequently approve them for solid concrete, cracked concrete environments, and hollow masonry block. Their thread-cutting action prevents internal bursting pressure.
Engineers evaluate Heavy duty concrete anchors across two primary force metrics: tension (pull-out) and shear (side-to-side weight). Wedge anchors typically yield higher ultimate tension loads in solid concrete. The deep friction grip resists immense upward pulling forces. Screw anchors, however, offer highly competitive shear strength. The thick, hardened steel body of a screw anchor resists snapping perfectly when heavy machinery or racking exerts lateral force.
Every anchor creates a "cone of influence." This represents a 45-degree stress zone radiating outward and upward from the embedded tip. Wedge anchors exert massive outward expansion forces. If you place a wedge anchor too close to a concrete edge, this force easily fractures the slab, causing concrete spalling. You must maintain strict spacing distances. Screw anchors provide the ultimate technical solution for tight-clearance installations. Because they do not expand, their cone of influence is significantly smaller. You can place them much closer to edges without risking concrete blowouts.
Project requirements change. Sometimes you need temporary solutions. Wedge anchors represent a permanent installation. If you need to remove a fixture, you must cut the stud off flush with an angle grinder. You cannot pull the expanded clip back out of the hole. Screw-style anchor bolts offer complete removability. You simply reverse your impact wrench and back the fastener out cleanly. This makes them indispensable for securing temporary racking, safety rail plates, and concrete formwork.
Anchor Feature Comparison Chart
Feature | Wedge Anchor | Screw Anchor Bolt |
|---|---|---|
Base Material | Solid concrete only | Solid, cracked, CMU, brick |
Edge Proximity | Requires large clearance | Allows close-edge placement |
Removability | Permanent (must be cut) | Fully removable |
Installation Tool | Manual torque wrench | Impact wrench |
Selecting the correct diameter directly influences the total load your fixture can bear. Manufacturers produce a wide range of standard Concrete anchor bolt sizes to meet different engineering demands. Common diameters range from 1/4" for light conduit clips up to 3/4" or even 1" for structural steel columns. Lengths typically span from 1-3/4" up to 12" depending on the required embedment. You must match the anchor diameter precisely to your fixture's mounting plate holes.
Drill bit selection causes frequent confusion on job sites. Wedge anchors follow nominal sizing. If you buy a 1/2" wedge anchor, you use a standard 1/2" masonry drill bit. The anchor slides into the hole easily before expanding. Screw anchors require an entirely different approach. They need a slightly undersized hole so the threads have material to bite into. You must use a highly specific ANSI-tolerance drill bit. Often, a 1/2" screw anchor requires a specialized 1/2" ANSI bit that actually drills slightly smaller than a standard half-inch diameter. Always check the manufacturer specification sheet before drilling.
Embedment depth directly controls your pull-out values. The deeper the anchor sits in solid concrete, the more strength it provides. However, calculating this depth differs between the two fasteners. For screw anchors, the entire embedded length engages the concrete. For wedge anchors, you must account for the unthreaded conical portion at the bottom. Additionally, you must factor in the thickness of the fixture, the washer, and the nut when selecting the total fastener length. Failing to account for these elements leaves you with insufficient threads to apply proper torque.
Hole preparation dictates the success or failure of any mechanical fastening job. Wedge anchors forgive a slight amount of residual dust at the bottom of the hole. As long as the hole is deep enough, the expansion clip still engages the walls. Screw anchors demand meticulous preparation. Concrete dust acts like packed sand. If you leave dust in the hole, the screw threads will bind, jam, and potentially snap the fastener. You must follow strict cleaning protocols.
Best practices for hole preparation include:
Drilling the hole straight without wallowing out the edges.
Drilling at least 1/4" deeper than the intended anchor embedment.
Vacuuming out the coarse debris.
Using a wire brush to loosen caked dust on the walls.
Blowing the hole completely clean using compressed air.
Labor costs often drive procurement decisions. Screw anchors offer massive labor savings on large-scale projects. Workers drive them straight in using a cordless impact wrench. This process takes seconds per hole. Wedge anchors require a more manual, deliberate process. You hammer them into the hole, thread the nut, and apply specific tension using a calibrated manual torque wrench. You cannot use an impact wrench to finish a wedge anchor, as it prevents accurate torque measurement.
Installation errors compromise structural safety. Watch out for these frequent mistakes on the job site. Over-torquing wedge anchors ranks as the most common error. Excessive tightening either strips the threads or pulls the expansion clip entirely through the concrete cone, destroying the holding power. With screw anchors, the primary risk involves hitting embedded rebar. If a screw anchor binds against steel rebar and the operator keeps driving it with an impact wrench, the hardened steel fastener will abruptly snap off inside the hole.
Certain structural scenarios demand the traditional holding power of expansion mechanisms. You should mandate wedge anchors when installing permanent structural steel columns. They excel in heavy machinery tie-downs where continuous vibration occurs. Use them for securing structural sill plates in residential and commercial framing. Whenever an application requires the absolute highest tension resistance in deep, solid concrete, the wedge anchor remains the industry standard.
You will find screw anchors vastly superior in dynamic, fast-paced environments. Pivot to these fasteners when installing warehouse pallet racking, as they allow for easy reconfiguration later. Use them for temporary wall bracing or tilt-up construction formwork. They provide the perfect solution for close-to-edge railing plates where expansion forces would crack the slab. Choose them for any application involving hollow CMU block, cracked concrete environments, or large-scale jobs where rapid installation translates into thousands of dollars in labor savings.
Never base your fastening decisions purely on marketing claims. You must verify the technical compliance of your chosen hardware. Always review the ICC-ES evaluation reports (ESRs) for both anchor types. These independent reports validate load capacities and ensure compliance with local building codes. Pay special attention to approvals for Seismic Design Categories C-F. If you build in earthquake-prone regions, you must select fasteners specifically engineered and rated for cracked concrete conditions. Both high-end wedge and screw anchors carry these ratings, but cheaper generic alternatives often fail these stringent tests.
Neither fastener claims universal superiority in the construction world. Your final choice hinges strictly on the integrity of your base material, your edge proximity limitations, and whether the installation remains permanent. Wedge anchors deliver massive pull-out strength for structural steel in solid slabs. Screw anchors provide speed, versatility, and crucial removability for fast-paced, edge-sensitive applications.
Always review your environmental constraints before purchasing hardware. We strongly encourage consulting a licensed structural engineer when dealing with critical overhead loads or seismic zones. Take action today by reviewing your project specification sheets. Select the appropriate ANSI-rated drill bits, verify the ICC-ES approvals, and procure the exact fasteners required to keep your upcoming construction phase safe and efficient.
A: Yes, you can remove and reinstall a screw-style anchor bolt. However, engineers generally advise against reusing it in the exact same concrete hole for structural loads. The initial installation cuts threads into the concrete. Removing and reinstalling it can degrade those delicate concrete threads, significantly reducing the anchor's ultimate pull-out capacity. Always drill a new hole for critical applications.
A: Maximum capacity requires deep embedment into solid concrete. As a general rule of thumb, you should embed a wedge anchor at least four to five times its diameter. For example, a 1/2" diameter anchor needs at least 2" to 2-1/2" of embedment. Always consult the manufacturer's specification sheet for exact minimum and maximum embedment depths.
A: Concrete screw anchors usually snap for three reasons. First, you may have left too much concrete dust in the hole, causing the threads to bind. Second, the anchor may have hit embedded steel rebar, stopping its forward momentum while the impact wrench kept applying rotational force. Third, you might have used a standard drill bit instead of the required ANSI-tolerance bit.
A: Yes. Wedge anchors require a standard masonry bit matching their nominal diameter. Concrete screw anchors require a specific, slightly undersized ANSI-tolerance drill bit. Using a standard bit for a screw anchor drills the hole too wide, preventing the mechanical threads from biting into the concrete wall and causing the fastener to spin freely.
