The modified epoxy material adheres tightly to the concrete substrate through intermolecular forces. At the same time, it penetrates into the micropores of the substrate to form a "mechanical locking key", enabling the steel bar and the concrete to form an integral stress system. As the exothermic curing reaction takes place, the adhesive hardens into a dense, rock-solid polymer matrix. The anchoring strength approaches or reaches the effect of pre - embedded steel bars. Installers will notice the thick, consistent texture of the paste as it completely fills the annular space, ensuring zero voids and providing maximum load transfer capabilities under heavy static or dynamic stress conditions.
Epoxy resin itself has good resistance to acid, alkali, and salt - fog corrosion. After modification, its resistance to medium erosion is further enhanced, making it suitable for harsh environments such as humidity and chemical pollution (e.g., underground projects and marine projects). The cured matrix forms an impenetrable barrier against corrosive agents like sulfates, chlorides, and industrial solvents. This exceptional stability protects the embedded metal anchors from rust and structural degradation, ensuring long-lasting performance even when constantly exposed to aggressive atmospheric or subterranean conditions.
By adding anti - aging additives, it can resist the influence of factors such as ultraviolet rays and temperature changes (-40°C to +80°C). Its performance remains stable during long - term use, and its service life can reach more than 50 years, far exceeding that of ordinary rebar - planting adhesives. This remarkable longevity means that critical infrastructure projects maintain their designed safety margins across decades of seasonal freeze-thaw cycles and intense sun exposure, eliminating the need for premature maintenance or costly structural rehabilitation.
Engineered with a fast-dry curing mechanism, this adhesive significantly accelerates construction timelines without compromising the ultimate load-bearing capacity. The advanced formulation is highly insensitive to moisture, allowing for efficient and reliable application even in damp, water-filled, or freezing-thawing site conditions. Contractors benefit from predictable set times that permit earlier loading of anchors, optimizing the overall workflow on demanding sites where weather delays and prolonged downtime are unacceptable.
Featuring a high-modulus composition and superior thixotropic properties, the adhesive maintains a thick, non-drip consistency upon extrusion from the cartridge. This distinct tactile characteristic means it not only performs flawlessly in standard vertical downward anchoring but also provides perfect support for challenging horizontal and overhead injection tasks. The paste stays exactly where it is placed, preventing material waste and ensuring full, secure encapsulation of the threaded rod or rebar regardless of the installation orientation.
Prioritizing occupational health on the job site, the adhesive utilizes a remarkably low-odor formulation, minimizing respiratory discomfort for workers operating in confined or poorly ventilated spaces. It strictly complies with stringent environmental and safety regulations, accompanied by a comprehensive Safety Data Sheet (SDS) to facilitate smooth project inspections and regulatory approvals. The absence of harsh volatile solvents ensures a safer working environment while still delivering uncompromising structural strength.
Achieving the highest engineering design standards requires precise execution and reliable material handling. Our injection epoxy anchoring adhesive is designed to streamline both the physical application process and the broader project procurement logistics, ensuring every phase from preparation to final inspection runs smoothly.
Proper installation is critical for maximizing pull-out strength. The process begins with precise drilling to the specified depth and diameter, followed by rigorous hole cleaning. We recommend a systematic approach using high-pressure air blowouts and stiff wire brushes to remove all dust, debris, and loose particulate matter. This meticulous preparation ensures the adhesive bonds directly to the clean, solid concrete matrix. Once prepped, the injection process is facilitated by our highly efficient delivery system.

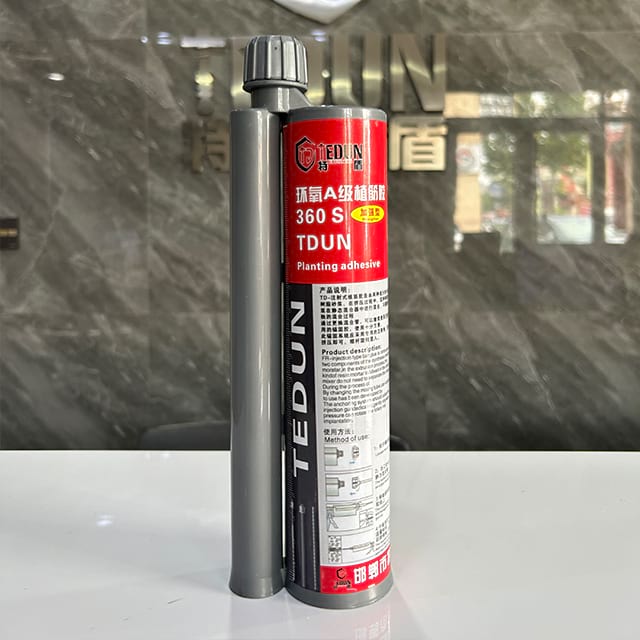

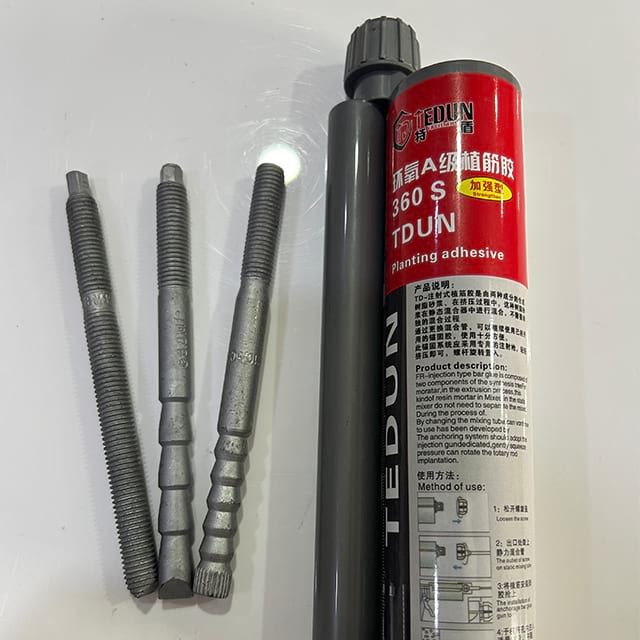

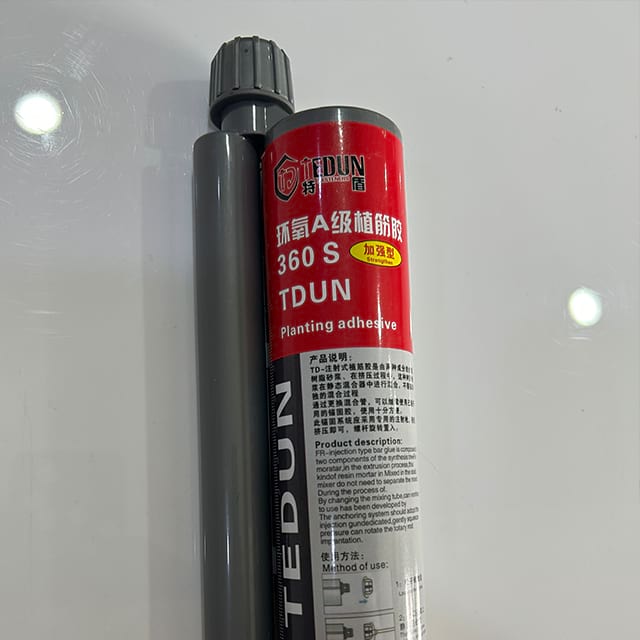

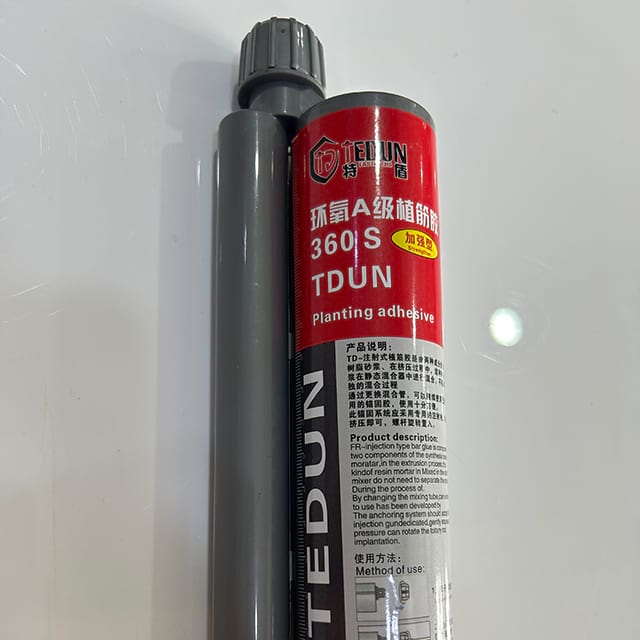

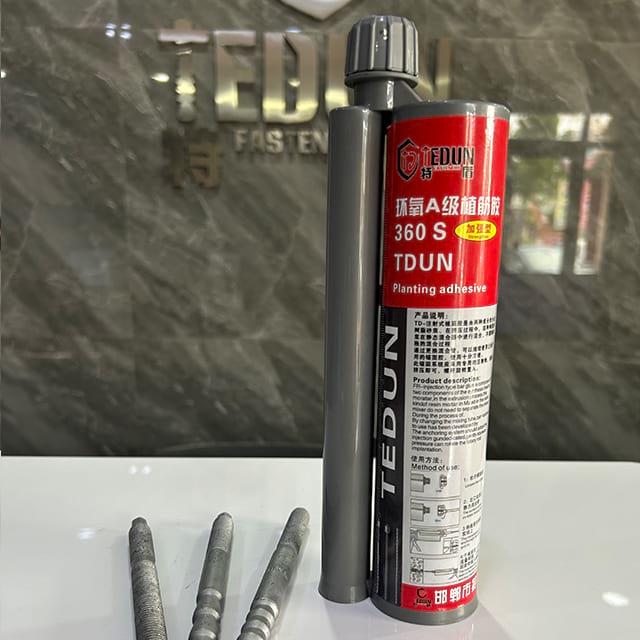

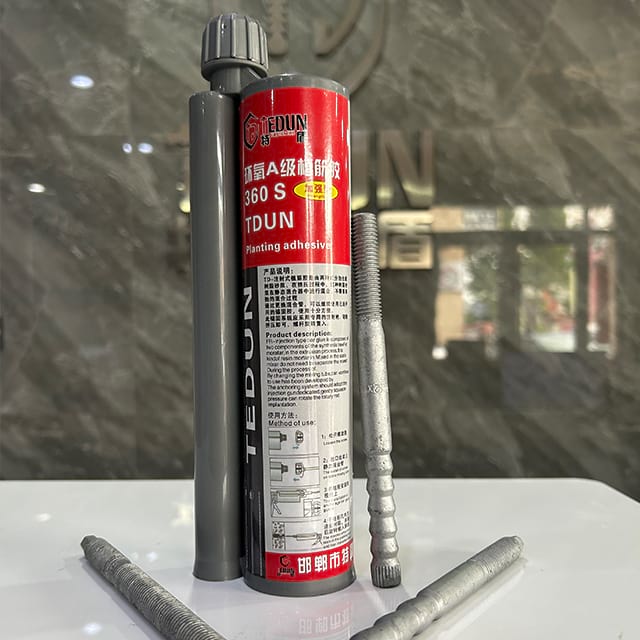

The adhesive is supplied in standard dual-component cartridges, paired with a specialized static mixing nozzle. As the trigger of the dispensing tool is pulled, the two distinct components merge smoothly through the internal helical baffles of the nozzle. This action produces a uniform, perfectly proportioned chemical blend visible through the translucent plastic. This precise mixing mechanism guarantees consistent curing, smooth extrusion, and significantly reduces material waste on site by eliminating manual measuring and mixing errors.
To support large-scale infrastructure demands and complex construction schedules, we provide comprehensive logistics and inventory solutions tailored to major engineering requirements.
| Support Area | Operational Details |
|---|---|
| Batch Tracking & Shelf Life | Clear shelf-life monitoring and batch code traceability printed on every cartridge for strict quality assurance and inventory rotation. |
| Tool Provisioning | Supply of compatible, heavy-duty injection dispensers and specialized cleaning accessories to ensure crews have the exact hardware needed. |
| Direct Site Delivery | Streamlined dispatch and logistics coordination directly to construction sites, maintaining project momentum and reducing handling delays. |
