Specify the wrong fastener in structural applications, and you invite disaster. Substrate spalling, shear failure, and severe compliance violations often follow poor anchor selection. While anchors represent a tiny fraction of project material expenses, premature failure dictates massive liability and complex remediation work. You simply cannot afford to guess.
Setting a baseline expectation is crucial because there is no universal fastener. Optimal selection requires aligning specific load requirements, substrate conditions, and field installation realities. In this guide, we explore how to choose the right anchoring solution for your demanding projects.
You will learn how substrate states impact structural performance. We will explain why specific load profiles demand distinct anchor styles. Finally, you will discover how compliance standards dictate your final specification.
Application Dictates Type: Wedge, screw, and sleeve anchors each serve distinct load profiles and base materials; overlapping them invites risk.
Substrate State Matters: Cracked versus uncracked concrete significantly alters anchor performance and compliance requirements.
Mechanical vs. Chemical Constraints: Mechanical anchors offer instant load capacity but require strict adherence to edge distance and spacing limits to prevent concrete breakout.
Compliance is Non-Negotiable: Specifying relies on verified approvals (e.g., ICC-ES, ETA) rather than generic tensile strength claims.

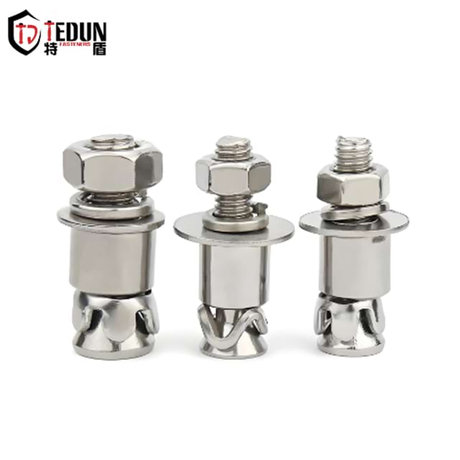

Engineers constantly weigh mechanical expansion against chemical resin systems. When you specify a Mechanical Anchor Bolt, you gain one major operational advantage. They require absolutely no curing time. Installation crews can apply immediate torque and transfer loads the second they set the fastener. This instant load capacity accelerates project timelines significantly.
Environmental resilience offers another compelling reason to choose mechanical options. Chemical resins degrade under extreme temperatures. They can lose structural integrity during a fire. Mechanical expansion relies purely on friction or undercutting. This physical engagement makes them highly immune to temperature fluctuations.
We must also apply a skeptical lens to understand their trade-offs. Mechanical expansion fundamentally exerts outward stress on the substrate. As you tighten the nut, the anchor forces itself against the concrete hole walls. This expansion pressure limits their versatility in certain layouts. They are less suitable for close edge distances. Tightly grouped spacing can cause the concrete to shatter between the holes. Chemical alternatives create zero expansion stress, making them better for tight clusters.
Best Practice: Always evaluate the ambient temperature and installation speed requirements. If you face freezing conditions, chemical epoxies will fail to cure. A mechanical solution becomes your only viable choice.
Industrial environments demand specific fastener profiles. Mechanical anchors come in several core designs. You must match the anchor mechanism to your base material and load profile. Using the wrong mechanism guarantees a compromised connection.
Best for: Solid concrete, static heavy shear, and continuous tension loads.
Reality Check: Do not use them in hollow masonry or brick. They require solid embedment to generate friction. Once expanded, they are completely permanent. You cannot remove them without grinding them flush to the surface.
Best for: Temporary installations, close-to-edge applications, and fast continuous fastening. They cut their own threads into the concrete.
Reality Check: Crews can remove and reuse them in specific non-structural cases. However, they require precise hole clearing. Trapped concrete dust causes them to bind and snap during installation.
Best for: Porous or hollow base materials like block and brick. The sleeve distributes expansion force over a larger area. This prevents wedge anchors from causing substrate blowout.
Reality Check: They generally offer lower ultimate load capacities than wedge equivalents. Do not specify them for critical heavy-duty shear applications.
Best for: Critical safety applications, heavy dynamic loads, seismic zones, and cracked concrete. They create a physical mechanical interlock rather than relying purely on friction.
Reality Check: They are highly reliable but very demanding. You must use specialized drill bits to create a bell-shaped hole. This drastically increases installation time and labor costs.
Anchor Type | Primary Mechanism | Ideal Substrate | Removability |
|---|---|---|---|
Wedge Anchor | Friction / Expansion | Solid Concrete Only | Permanent |
Screw Anchor | Thread Cutting / Interlock | Concrete, Brick, Block | Removable |
Sleeve Anchor | Distributed Expansion | Hollow Masonry, Brick | Permanent |
Undercut Anchor | Physical Undercut | Cracked Solid Concrete | Permanent |
Sizing structural connections requires more than reading a box label. You must assess the environment, the concrete condition, and the specific forces acting on the joint. A systematic approach ensures your Heavy duty concrete anchor bolts perform safely under pressure.
Engineers define the critical difference between cracked and uncracked concrete based on tension zones. Most structural concrete is assumed cracked under load. Even microscopic hairline cracks compromise friction-based fasteners. When concrete cracks, the drill hole widens. Standard wedge anchors can slip out. If you design for a tension zone, you must specify anchors explicitly approved for cracked concrete.
You must establish a framework for evaluating static weight against dynamic forces. Tension pulls the anchor straight out of the hole. Shear pushes the anchor sideways across the substrate surface. Static loads remain constant over time. Dynamic loads include vibratory forces from heavy machinery or seismic events. Dynamic loads require undercut mechanisms or specialized expansion clips designed to re-expand if the hole shifts.
Your minimum embedment depth dictates your ultimate holding power. Deeper embedment engages a larger cone of concrete. However, edge proximity limits where you can place a Heavy duty mechanical anchor bolt. If you place an expansion anchor too close to a slab edge, the outward stress will shatter the concrete. Manufacturers publish strict minimum edge distances that you must respect.
Environmental exposure dictates your material choice. Selecting the wrong coating leads to rapid structural degradation.
Zinc-Plated Carbon Steel: Specify this only for dry, climate-controlled interior applications.
Hot-Dip Galvanized (HDG): Use HDG for mild exterior exposure or damp industrial environments.
304 Stainless Steel: Choose this for wet exterior environments facing moderate pollution.
316 Stainless Steel: Mandate 316 stainless for highly corrosive, chemical, or marine environments.
Common Mistake: Ignoring galvanic corrosion. If you fasten a stainless steel fixture using a zinc-plated anchor in a damp environment, the anchor will corrode rapidly due to dissimilar metal reactions.
Engineering plans mean nothing if field execution fails. Structural connections suffer heavily from poor installation practices. You must understand common field errors to maintain safety margins.
We see one field failure more than any other. Crews frequently use worn or improperly sized drill bits. Mixing ANSI standard bits with metric anchors destroys holding power. Mechanical expansion relies on precise hole tolerances. If a bit wears down, the hole becomes too small, and the anchor jams. If the bit wobbles and over-drills, the hole becomes too large, resulting in inadequate friction. Always use carbide-tipped bits matching the manufacturer's exact specifications.
Many installers mistakenly believe tighter is always better. Applying excessive torque does not increase holding power. Instead, it risks snapping the bolt entirely. Worse, excessive torque forces the expansion clip to crush the surrounding concrete. This localized crushing drastically reduces the anchor's capacity. Always mandate the use of calibrated torque wrenches on your job sites.
Procurement teams must look for concrete E-E-A-T (Expertise, Experience, Authoritativeness, Trustworthiness) indicators. Do not rely on generic manufacturer marketing claims. You need independent verification.
ICC-ES Evaluation Reports (ESRs): Required in North America to prove building code compliance.
ETA Documents: The European Technical Assessment standard for structural integrity.
Seismic Approvals: Look for Category C through F approvals if building in earthquake-prone regions.
Selecting the final product requires a disciplined approach. We recommend following a structured procurement checklist before issuing a purchase order. This ensures the Mechanical Anchor Bolt matches the reality of your job site.
Define the Job: Identify the exact base material. Is it lightweight concrete, normal weight concrete, or grouted masonry? Determine your environmental exposure level and precisely define the load type (static vs. dynamic).
Verify the Specs: Cross-reference the anchor’s technical data sheet (TDS) against your project engineering requirements. Confirm the approved embedment depths match your slab thickness.
Evaluate Installation Labor and Tooling: Factor in specialized tooling requirements. Undercut anchors require expensive specialty drill bits and vacuum systems. Evaluate installation speed and labor time, not just the per-unit cost of the anchor. A cheaper anchor that takes twice as long to install wastes project budget.
Next Steps: Address borderline edge-case applications immediately. We recommend consulting directly with structural engineers or technical fastener distributors when your edge distances look tight. Do not guess on critical connections.
Matching a mechanical anchor bolt to your application requires strict diligence. You must balance complex load dynamics against base material integrity and environmental threats. Overlooking any single factor—whether it is concrete cracking, drill bit tolerances, or edge distances—compromises the entire structural connection.
We encourage a shift in mindset. Stop "buying bolts" and start "specifying structural connections." Every fastener carries structural liability, making technical compliance and correct installation practices critical to your success.
Take action today to secure your upcoming projects. Review your technical spec sheets carefully. Engage with engineering support teams early in the design phase, or request a quote for project-specific sizing to ensure complete code compliance and structural safety.
A: Yes, but only specific types. You must specify undercut anchors or specially designed wedge and screw anchors. These specific models hold explicit ICC-ES or ETA approvals for cracked concrete tension zones. Standard expansion anchors will fail if the concrete cracks and the hole expands.
A: Screw anchors and drop-in anchor bolts can be removed. Wedge anchors and sleeve anchors are generally permanent. Once their expansion clips engage the concrete, they lock in place. You must cut them flush with the surface if they are no longer needed.
A: It depends entirely on the anchor diameter and your embedment depth. Manufacturers provide specific Critical Edge Distance guidelines in their technical approvals. Placing them too close causes outward expansion pressure to shatter the concrete, resulting in immediate blowout.
A: Over-torquing can strip the threads or break the bolt entirely. More commonly, it causes the expansion clip to crush the surrounding concrete substrate. This localized damage drastically reduces the anchor's ultimate holding capacity. Always use a calibrated torque wrench.
