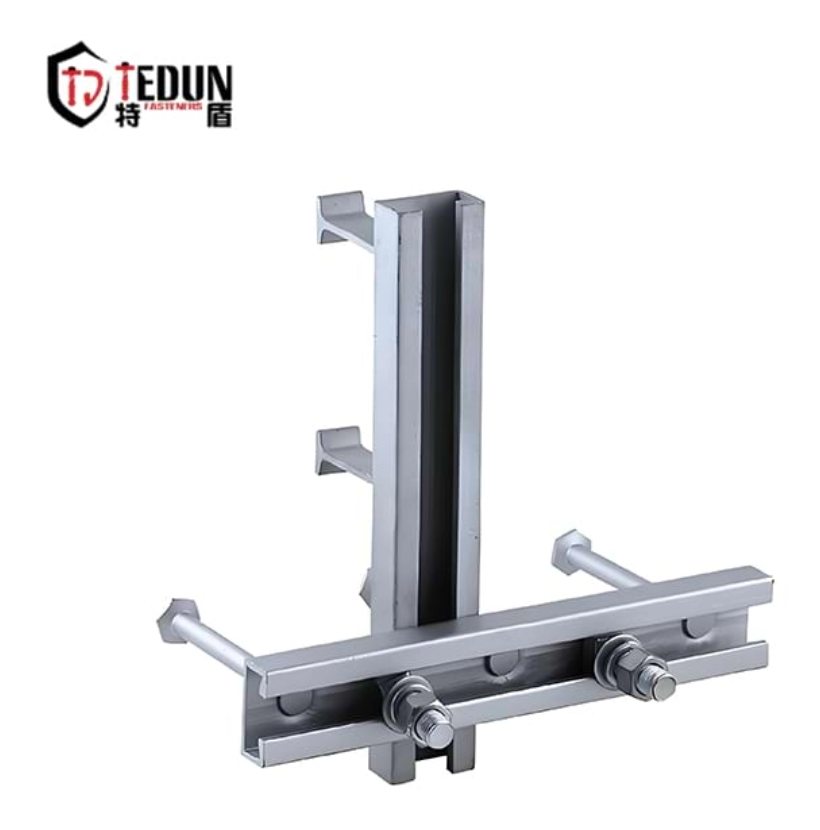

Seismic-Resistant Embedded Channel

Product Advantages

Exceptional Load Resistance

The Embedded Channel boasts superior dynamic load resistance, impact load resistance, and seismic load resistance. Its robust steel construction and concrete-embedded design ensure it withstands vibrations, sudden impacts, and seismic activity—critical for high-risk areas like tunnels and industrial facilities.

Welding-Free & Drilling-Free Construction

Unlike conventional anchors, this solution requires no on-site welding or drilling during installation. This not only avoids concrete reinforcement damage (a major safety hazard of post-embedded parts) but also eliminates fire risks and reduces construction time by 30% on average.

Flexible Adjustment & Efficiency

Along the channel’s length, the anchor point adjustment range is significantly expanded, allowing ±15mm fine-tuning for precise alignment. This flexibility solves common positioning errors in construction, comprehensively improving construction efficiency and construction safety while reducing rework costs.

Detail Data

TEDUN offers the TC series Embedded Channels with five standardized models to meet diverse project needs:

TC 30/20: Features a channel steel width (bch) of 30mm, channel steel height (hch) of 20mm, channel steel length of 150–400mm, minimum burial depth (hef) of 80mm, and channel steel opening (d) of 14mm.

TC 38/23: Includes a 38mm width, 23mm height, 150–400mm length, 97mm burial depth, and 18mm opening.

TC 40/22: Offers 40mm width, 22mm height, 150–350mm length, 95mm burial depth, and 19mm opening.

TC 50/25: Provides 50mm width, 25mm height, 150–550mm length, 95mm burial depth, and 23mm opening.

TC 52/34: Designed with 52mm width, 34mm height, 150–550mm length, 155mm burial depth, and 23mm opening.

All models use high-grade carbon steel with anti-corrosion treatment, compatible with standard T-bolts for easy assembly.

Applications

Curtain Wall Systems

Ideal for anchoring glass/metal/stone curtain wall frames, the Embedded Channel enables three-dimensional adjustment (±15mm) to correct installation deviations, ensuring the curtain wall’s flatness and structural integrity.

MEP Supports

Used to suspend HVAC ducts and cable trays in commercial and industrial buildings. Its spark-free installation replaces traditional welding, making it safe for fire-sensitive environments.

Rail Transit Tunnels

Secures cable brackets and escape platforms in high-speed rail and subway tunnels. It meets fatigue resistance requirements under long-term vibrations (compliant with the EN 1993 standard).

Industrial Anchorage

Provides seismic base fixation for heavy machinery (e.g., machine tools, industrial fans) with a maximum load capacity of 50kN/m (varies by model), ensuring equipment stability during operation.

Prefabricated Structures

Forms rapid-connection joints for precast concrete (PC) components (beams, columns). It resolves positioning deviations caused by cast-in-place concrete, accelerating prefabricated building assembly.

Why Choose Us

TEDUN provides end-to-end support for Embedded Channel customers:

Stock Availability: Maintains a 5000-ton stock inventory, with up to 100,000 sets of single specifications available for urgent large projects.

Quality Assurance: All products include ISO 9001 quality certifications and third-party testing reports to verify performance.

Technical Consultation: A dedicated team offers free installation guidance and load-calculation support.

Customization: Provides tailored Embedded Channel solutions (e.g., special lengths, anti-corrosion coatings) for unique project needs.

After-Sales Service: Offers a 5-year product warranty and 24/7 response to post-installation inquiries.
