Every commercial construction project relies heavily on unseen foundational elements to maintain safety and performance. Incorrectly sizing a structural fastening system instantly compromises structural integrity. It often leads to catastrophic load failures, strict building code violations, and incredibly costly rework on the job site. Selecting the exact hardware demands careful attention to engineering details. You must seamlessly match environmental conditions and specific load demands, such as upward tension versus downward shear forces. Additionally, unexpected base material variations require precise diameter, length, and embedment depth specifications.
Ignoring these critical factors invites severe safety risks and structural liabilities. This comprehensive guide provides actionable, compliance-aware insights designed specifically for industry professionals. We will walk you through evaluating, sizing, and specifying the right hardware configurations. You will learn exactly how to secure commercial, industrial, and complex heavy-duty engineering projects efficiently. By understanding these core principles, you ensure lasting stability and full code compliance across every installation.
Anchor holding power is directly dictated by embedment depth, anchor diameter, and the compressive strength (PSI) of the base concrete.
Always match the drill bit size exactly to the anchor diameter for mechanical anchors (e.g., a 1/2" wedge anchor requires a 1/2" masonry bit), unless specifying chemical adhesives.
Heavy duty concrete anchors, such as wedge and epoxy systems, require strict adherence to minimum edge distance and spacing requirements to prevent concrete spalling.
Verify all load specifications against baseline engineering standards (e.g., ACI 318) and account for a standard 4:1 safety factor for static loads.
Selecting the right fastening mechanism depends heavily on your specific structural load type. Static loads act very differently than dynamic or vibratory forces. You also need to assess base material consistency before drilling the first hole. Let's deeply explore the various Types of concrete anchors available for professional installations and understand where they perform best.
Wedge systems perform remarkably well in solid environments. Engineers frequently specify them for demanding applications. They deliver exceptionally high shear and tension pull-out values. When you torque the nut, the bottom clip expands and bites aggressively into the solid substrate. However, they remain entirely unsuitable for brick or hollow block. The intense localized expansion easily cracks weaker materials, rendering the connection useless.
Sleeve variations offer much greater versatility for unpredictable environments. The mechanism expands along the entire length of the metal sleeve rather than just at the tip. They perform beautifully in older masonry, brick, and cinder block. We strongly recommend them when base material quality seems inconsistent or prone to internal crumbling.
Chemical systems boast the highest ultimate load capacities currently available on the market. They literally create an internal bond stronger than the base concrete itself. You will find them essential for high-vibration environments, such as mounting industrial generators or stamping presses. They also excel during close-to-edge installations where mechanical expansion would instantly cause unwanted edge spalling or cracking.
You must keep specific risk considerations in mind when specifying epoxies. Chemical solutions remain highly sensitive to installation errors. Dust left in the drilled hole completely ruins the adhesive bond. Industry best practices require a strict "blow-brush-blow" hole cleaning method. Furthermore, improper two-part mixing or ignoring temperature-dependent curing times leads to guaranteed failure.
Drop-in options feature a flush-mount, internally threaded design. They work perfectly for overhead installations. HVAC technicians and piping contractors frequently rely on them to accept suspended threaded rods. Installing them requires a specialized setting tool to strike the internal plug, forcing the bottom shell to expand outward.

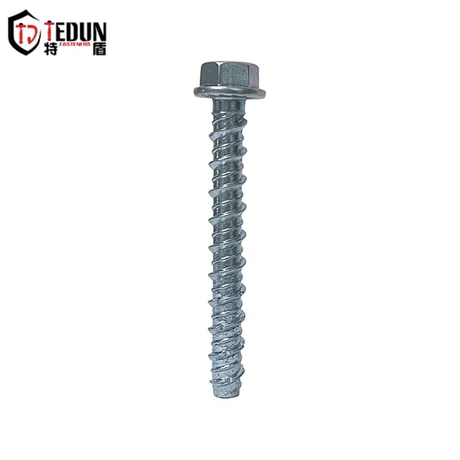

Concrete screws, often called Tapcons in the field, guarantee fast installation for light-to-medium static loads. They aggressively cut their own internal threads directly into the base material. You must use highly specific pilot hole sizes to ensure proper thread engagement without snapping the hardened steel screw during installation.
Precision sizing guarantees proper friction and mechanical expansion. Choosing the right dimensions dictates your project's overall safety and longevity. Let's examine the core logic behind standard Concrete anchor bolt sizes to ensure perfect installations every time.
Choosing the correct diameter involves analyzing the weight and function of the attached fixture. Oversizing wastes money, while undersizing risks catastrophic collapse.
1/4" to 3/8" Diameters: Ideal for lightweight fixtures, electrical conduit straps, basic handrails, and standard signage.
1/2" to 5/8" Diameters: Best suited for medium-duty machinery anchoring, warehouse pallet racking, and structural steel base plates.
3/4" to 1"+ Diameters: Reserved strictly for heavy structural columns, massive industrial equipment, and seismic bracing. We classify these as true heavy duty components.
The golden rule for mechanical installations remains surprisingly simple. Your drilled hole diameter must exactly match your outside anchor diameter. A 1/2-inch fastener requires a precise 1/2-inch ANSI-certified carbide masonry bit. Using worn-out drill bits creates undersized holes, which causes the fastener to jam prematurely before reaching the required depth.
Anchor Diameter | ANSI Drill Bit Size | Min. Fixture Clearance Hole | Typical Application Profile |
|---|---|---|---|
1/4" | 1/4" | 5/16" | Electrical boxes, light struts |
3/8" | 3/8" | 7/16" | Shelving units, pipe supports |
1/2" | 1/2" | 9/16" | Standard machinery, base plates |
5/8" | 5/8" | 11/16" | Warehouse racking, steel columns |
3/4" | 3/4" | 13/16" | Heavy industrial plant equipment |
1" | 1" | 1-1/8" | Massive structural framing |
Calculating the correct overall length requires a strict mathematical approach. Never guess this critical measurement. A short fastener fails to reach the required embedment zone.
Formula: Anchor Length = Minimum Embedment Depth + Fixture Thickness + Nut/Washer Thickness + Space for internal expansion.
For example, imagine fastening a standard 2x4 wood plate (1.5 inches thick) to a slab. If the technical data sheet requires a 2.5-inch minimum embedment, and the nut/washer takes up 0.5 inches, your absolute minimum length equals 4.5 inches. In this scenario, purchasing a standard 5-inch length provides the necessary expansion tolerance. Specifying the correct Concrete Anchor Bolt length prevents dangerous shallow installations.
Secure installations rely heavily on strict engineering safety standards. Industry professionals universally default to ACI (American Concrete Institute) Chapter 17 guidelines. We must adhere to these baseline rules to ensure total compliance and long-term structural integrity.
Embedment depth represents exactly how far the metal body reaches into the actual structural base material. You must explicitly exclude non-structural surface plaster, decorative finishing layers, or soft screed from this measurement. True embedment dictates whether you achieve the manufacturer's published ultimate load values.
A general field baseline suggests aiming for 4 to 5 times the fastener diameter. However, you should always default to manufacturer-specific technical data sheets (TDS). Each unique product behaves differently under stress. Pushing a fastener deeper generally increases tensile capacity, provided the slab thickness accommodates the extra depth without punching through the bottom.
Installing hardware too close to an edge introduces severe failure risks. The concrete will likely suffer explosive blowout or spalling when heavy tension applies. The standard industry guideline requires a minimum distance of 5 fastener diameters from any unsupported edge.
Spacing between multiple units requires equal attention. You need a minimum of 10 anchor diameters between individual drilled holes. Placing them too close together creates overlapping internal stress cones. When concrete takes a heavy load, stress distributes outward in a 45-degree cone shape. Overlapping these cones drastically weakens the substrate, creating a single massive weak point and inviting sudden catastrophic collapse.
The strongest, most expensive hardware fails immediately if the base material lacks structural integrity. You must correctly assess the substrate before finalizing your design selection. Implementation realities on the job site often differ dramatically from idealized engineering blueprints.
Solid poured slabs easily support nearly all fastening types. You must determine if the environment qualifies as cracked or uncracked concrete under ACI standards. Uncracked, 3000+ PSI environments allow wedge styles to provide the absolute best cost-to-performance ratio. They install quickly, require minimal specialized training, and deliver massive holding power.
Common Mistake: Over-torquing the nut in solid concrete. This strips the internal threads or pulls the expansion clip entirely past its structural limit. Always use a calibrated torque wrench.
Standard expansion fasteners will aggressively crush hollow webbing. The intense outward pressure destroys the brittle cinder blocks from the inside out. This specific environment explicitly requires sleeve variations, specialized toggle bolts, or chemical adhesives paired with mesh screen tubes. The screen tube holds the epoxy in place, preventing it from falling uselessly into the block's hollow cavity.
Older brick buildings present unpredictable compressive strength. Mortar joints easily crumble under minimal localized pressure. We strongly advise using longer sleeve models or robust adhesive solutions here. These specific systems distribute mechanical stress evenly and safely across delicate, highly inconsistent materials.
Following a strict step-by-step logic prevents incredibly costly engineering mistakes. Use this structured approach to finalize your hardware requirements. Let's walk through the exact shortlisting process used by experienced structural professionals.
Determine Load Type & Weight: Carefully calculate the anticipated Ultimate Tensile Load (pull-out force) and Shear Load (downward cutting force). You must then apply the standard 4:1 safety factor. Your safe working load equals roughly 25% of the ultimate tested failure load.
Analyze the Substrate: Identify whether you face solid, hollow, cracked, or uncracked concrete. Each unique base material demands a drastically different mechanical approach. Check the PSI rating if documentation exists.
Identify Environmental Constraints: Does your project face a highly corrosive environment? Standard zinc-plated steel rusts quickly outdoors. Specify 304 or 316 Stainless Steel for wet conditions. Hot-Dipped Galvanized also works well for treated lumber applications.
Calculate Dimensions: Cross-reference your exact fixture thickness and required embedment depth. This finalizes your necessary bolt sizes and prevents ordering errors.
Consulting experienced professionals remains a crucial next step. We always recommend reviewing manufacturer pull-test data thoroughly. Sourcing the right Heavy duty concrete anchors ensures you meet demanding building codes. Whenever feasible, procure test units for on-site pull validation before authorizing mass installation.
Securing heavy structures demands strict, unwavering attention to detail. True anchoring security requires balancing complex load data, harsh substrate realities, and exact sizing parameters. Bypassing these mandatory evaluation steps invites severe liability and structural danger.
Never substitute specified brands, diameters, or embedment depths without formal engineering recalculation. You must verify structural code compliance whenever altering a project blueprint. Take the time to properly assess your base material. Match your ANSI drill bits precisely to your hardware. Always prioritize safe edge distances and proper embedment depths to guarantee long-term, fail-proof structural integrity.
A: For mechanical types like wedge or sleeve anchors, you must exactly match the masonry bit diameter to the fastener's outside diameter. A 1/2-inch bolt requires a 1/2-inch drill bit. However, for epoxy systems or threaded concrete screws, you must strictly check the manufacturer's technical specifications, as they require highly specific pilot hole sizes.
A: Installing hardware too shallowly leads directly to concrete breakout failure. It drastically reduces the tensile and pull-out capacity of the fastener. Furthermore, shallow embedment violates standard structural codes, instantly exposing your project to severe safety liabilities, inspection failures, and potential collapses.
A: No. Wedge systems generate intense, highly localized mechanical expansion at the tip. This outward pressure easily crushes the hollow webbing of cinder blocks and shatters brittle brick mortar. You must use sleeve alternatives or chemical adhesives instead, as they distribute expansion stress safely across weaker substrates.
A: The standard industry safety factor for static loads is typically 4:1, meaning the safe working load is only 25% of the ultimate pull-out strength. However, local structural codes frequently require much higher safety ratios for vibratory, seismic, or dynamic loads depending on the specific application.
