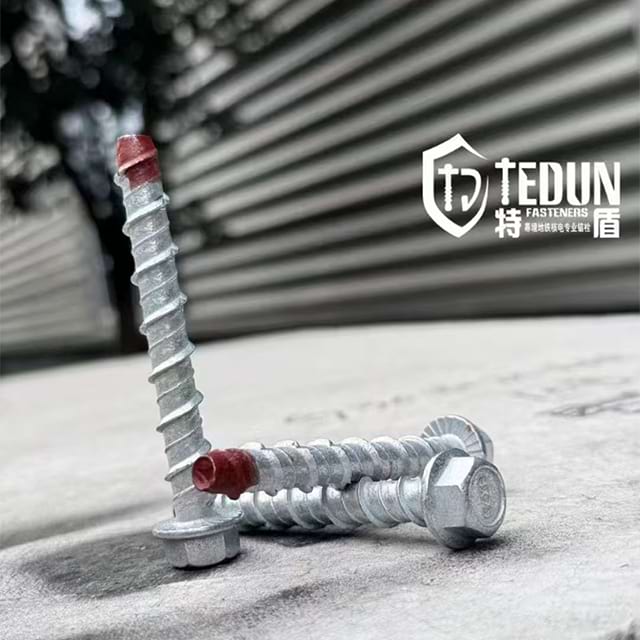

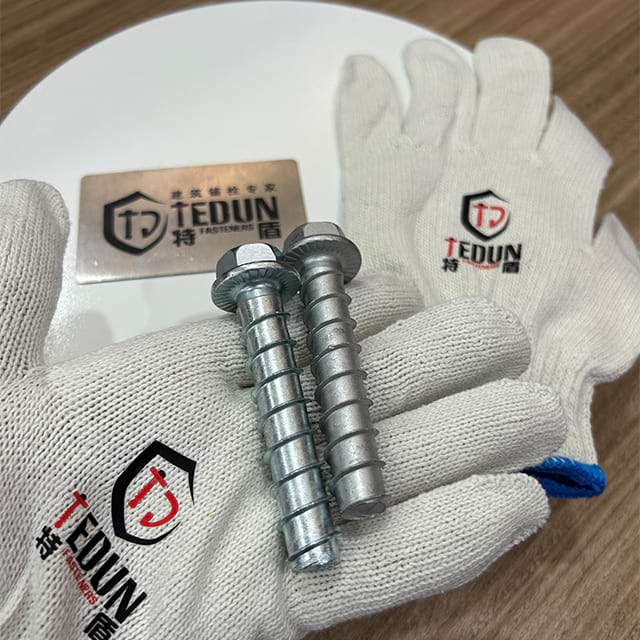

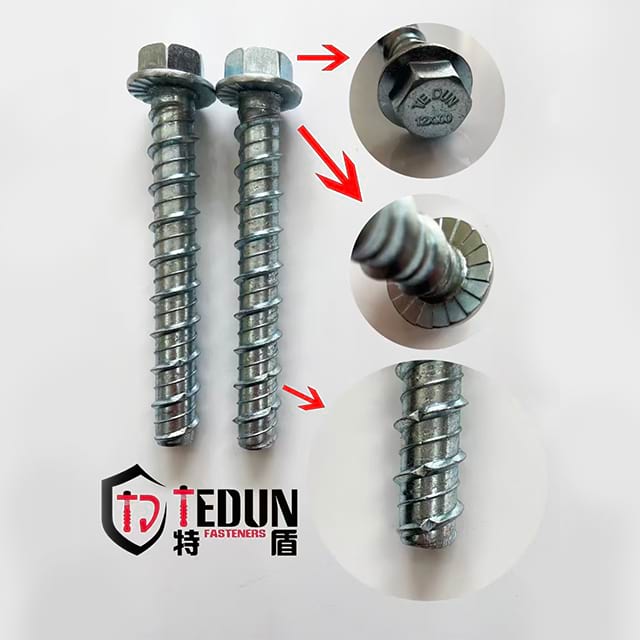

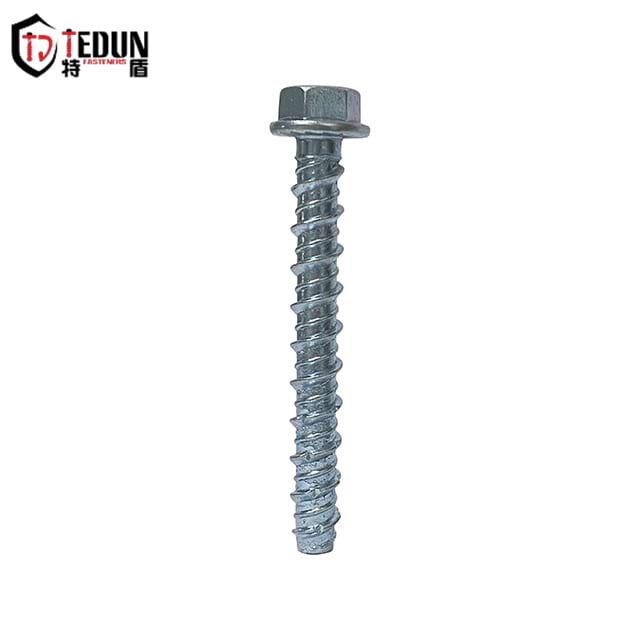

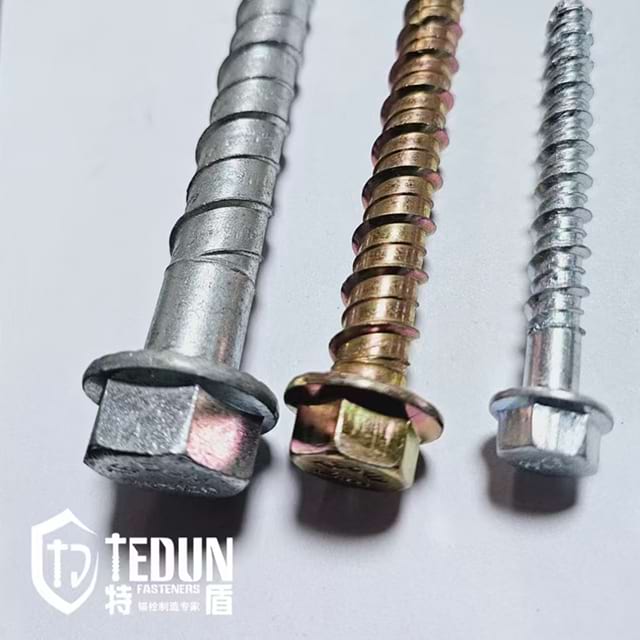

Concrete Self-Tapping Anchor Bolt With Hex Head

Name: Concrete Self-Tapping Anchor Bolt With Hex Head
Rating: 5.0 (40 reviews)

Advantage

Application

Size(mm)	Grade	Installation hole diameter (mm)	The effective embedment depth(mm)	Maximum fixing thickness (mm)	Standard tensile load for 30 MPa concrete(KN)	Safe tensile load for 30 MPa concrete(KN)
8*55	8.8/10.9	8.0	50	5.0	15.69	3.92
8*65	8.8/10.9	8.0	50	15.0	15.69	3.92
8*75	8.8/10.9	8.0	50	25.0	15.69	3.92
8*85	8.8/10.9	8.0	50	35.0	15.69	3.92
8*100	8.8/10.9	8.0	50	50.0	15.69	3.92
8*110	8.8/10.9	8.0	50	60.0	15.69	3.92
8*120	8.8/10.9	8.0	50	70.0	15.69	3.92
8*150	8.8/10.9	8.0	50	100.0	15.69	3.92
10*60	8.8/10.9	10.0	55	5.0	18.10	4.52
10*70	8.8/10.9	10.0	55	15.0	18.10	4.52
10*80	8.8/10.9	10.0	55	25.0	18.10	4.52
10*90	8.8/10.9	10.0	55	35.0	18.10	4.52
10*100	8.8/10.9	10.0	55	45.0	18.10	4.52
10*110	8.8/10.9	10.0	55	55.0	18.10	4.52
10*120	8.8/10.9	10.0	55	65.0	18.10	4.52
10*130	8.8/10.9	10.0	55	75.0	18.10	4.52
10*150	8.8/10.9	10.0	55	95.0	18.10	4.52
12*80	8.8/10.9	12.0	65	15.0	23.25	5.81
12*90	8.8/10.9	12.0	65	25.0	23.25	5.81
12*100	8.8/10.9	12.0	65	35.0	23.25	5.81
12*150	8.8/10.9	12.0	65	85.0	23.25	5.81
12*200	8.8/10.9	12.0	65	135.0	23.25	5.81
16*100	8.8/10.9	16.0	80	20.0	31.75	7.94
16*130	8.8/10.9	16.0	80	50.0	31.75	7.94
16*150	8.8/10.9	16.0	80	70.0	31.75	7.94
16*200	8.8/10.9	16.0	80	120.0	31.75	7.94

Size(mm)	Grade	Installation hole diameter (mm)	The effective embedment depth(mm)	Maximum fixing thickness (mm)	Standard tensile load for 30 MPa concrete(KN)	Safe tensile load for 30 MPa concrete(KN)
8*55	8.8/10.9	8.0	50	5.0	15.69	3.92
8*65	8.8/10.9	8.0	50	15.0	15.69	3.92
8*75	8.8/10.9	8.0	50	25.0	15.69	3.92
8*85	8.8/10.9	8.0	50	35.0	15.69	3.92
8*100	8.8/10.9	8.0	50	50.0	15.69	3.92
8*110	8.8/10.9	8.0	50	60.0	15.69	3.92
8*120	8.8/10.9	8.0	50	70.0	15.69	3.92
8*150	8.8/10.9	8.0	50	100.0	15.69	3.92
10*60	8.8/10.9	10.0	55	5.0	18.10	4.52
10*70	8.8/10.9	10.0	55	15.0	18.10	4.52
10*80	8.8/10.9	10.0	55	25.0	18.10	4.52
10*90	8.8/10.9	10.0	55	35.0	18.10	4.52
10*100	8.8/10.9	10.0	55	45.0	18.10	4.52
10*110	8.8/10.9	10.0	55	55.0	18.10	4.52
10*120	8.8/10.9	10.0	55	65.0	18.10	4.52
10*130	8.8/10.9	10.0	55	75.0	18.10	4.52
10*150	8.8/10.9	10.0	55	95.0	18.10	4.52
12*80	8.8/10.9	12.0	65	15.0	23.25	5.81
12*90	8.8/10.9	12.0	65	25.0	23.25	5.81
12*100	8.8/10.9	12.0	65	35.0	23.25	5.81
12*150	8.8/10.9	12.0	65	85.0	23.25	5.81
12*200	8.8/10.9	12.0	65	135.0	23.25	5.81
16*100	8.8/10.9	16.0	80	20.0	31.75	7.94
16*130	8.8/10.9	16.0	80	50.0	31.75	7.94
16*150	8.8/10.9	16.0	80	70.0	31.75	7.94
16*200	8.8/10.9	16.0	80	120.0	31.75	7.94
