In the world of heavy-duty fastening, not all anchors are created equal. For safety-critical connections, engineers and specifiers rely on a rigorous standard known as the European Technical Assessment, or ETA. This certification serves as a universal language for performance, ensuring an anchor will behave exactly as designed under immense stress. The framework is overseen by the European Organisation for Technical Assessment (EOTA), which works to harmonize testing protocols across the continent. For applications like curtain wall facades, nuclear power plant components, and vital infrastructure, an ETA is the undisputed gold standard for reliability and risk management. As the industry evolves, understanding the transition from older guidelines like ETAG 001 to the current design standard, Eurocode 2 (EN 1992-4), is essential for ensuring both compliance and structural integrity.
Legal Compliance: ETA-approved anchors satisfy the Construction Products Regulation (CPR) for CE marking.
Performance Certainty: ETA provides verified data for load-bearing capacity in cracked and non-cracked concrete.
Risk Mitigation: Using ETA-certified anchors often eliminates the need for costly on-site pull-out tests.
Seismic Safety: Specific ETA categories (C1/C2) define suitability for high-seismic zones.
Installation Reliability: ETA documents mandate specific installation parameters (torque, depth, and undercut geometry) to ensure design intent.
The ETA framework provides a transparent and standardized method for evaluating the performance of construction products that are not covered by a harmonized European Standard (hEN). For mechanical fasteners like Undercut Anchors, this process is crucial for establishing trust and predictability in their performance.
Historically, the testing protocols for anchors were defined by the European Technical Approval Guideline 001 (ETAG 001). This document laid out a comprehensive series of tests to determine an anchor's behavior under various conditions. While ETAG 001 is no longer used for new assessments, its principles have been carried over into the current system of European Assessment Documents (EADs). An EAD is the technical document used by a Technical Assessment Body (TAB) to draw up an ETA. It ensures that every anchor claiming a certain performance level has passed the exact same rigorous qualification tests, from load capacity to sensitivity to installation errors.
One of the most important classifications within an ETA for concrete anchors is the "Option." This number indicates the type of concrete the anchor is approved for:
ETA Option 1: This is the highest level of approval. It certifies an anchor for use in both cracked and non-cracked concrete. Cracked concrete is assumed to be present in the tension zones of structures, where micro-cracks can form under load, potentially reducing the holding power of friction-based anchors. Option 1 approval is mandatory for most safety-critical applications.
ETA Option 7: This approval is limited to use in non-cracked concrete only. These anchors are suitable for compression zones or situations where tensile stress on the concrete is guaranteed to be absent. Using an Option 7 anchor in a potential crack zone is a significant safety risk.
Undercut anchors, due to their mechanical interlock mechanism, typically achieve an Option 1 rating, showcasing their reliability even when the integrity of the surrounding concrete is compromised.
Once an anchor receives an ETA, the manufacturer must issue a Declaration of Performance (DoP). This legal document is the manufacturer's guarantee that the product will perform as described in the ETA. For an engineer, the DoP and its associated ETA document are invaluable. They contain all the necessary design data, including:
Characteristic resistance values for tension and shear loads.
Required edge distances and anchor spacings.
Installation parameters, such as drill hole diameter, embedment depth, and tightening torque.
Information on durability and corrosion resistance.
Learning how to read these documents allows you to extract the precise data needed for accurate structural calculations according to Eurocode 2 (EN 1992-4).
A standard ETA is based on the assumption of a 50-year working life for the anchor under normal service conditions. This long-term perspective is vital for calculating the total cost of ownership (TCO). While an ETA-approved anchor may have a higher initial cost, its proven durability and performance over five decades provide unmatched value and peace of mind. The assessment considers factors like material degradation and sustained load performance, ensuring the connection remains secure for the intended lifespan of the structure.

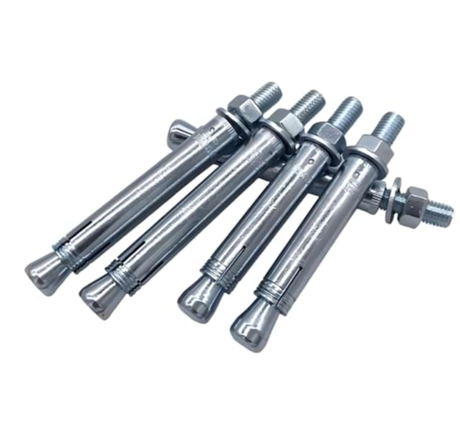

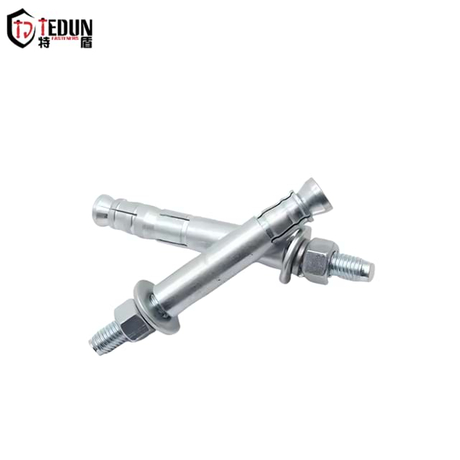

The exceptional performance of undercut anchors stems from a simple yet powerful engineering principle: mechanical interlock. Unlike expansion anchors that rely on friction, undercuts create a positive-locking connection with the concrete, leading to higher load capacities and greater reliability.
The installation process involves drilling a standard cylindrical hole followed by a secondary operation that creates a "bell" or cone shape at the bottom. The anchor's sleeve then expands into this void. This specialized Cone Cavity For Undercut Anchors forms a load-bearing shoulder. When a tensile load is applied, the force is transferred directly from the anchor's locking mechanism to the concrete in bearing, much like a headed stud cast directly into the concrete. This direct load transfer is far more robust and predictable than the frictional forces used by wedge or sleeve anchors.
A key advantage of the mechanical interlock is the near absence of expansion stress during installation. Traditional expansion anchors work by exerting high radial forces against the wall of the drill hole. This outward pressure can be problematic in several scenarios:
Close to Edges: High expansion forces can cause concrete to spall or crack if the anchor is too close to an edge or corner.
Close Spacing: Installing multiple expansion anchors near each other can create overlapping stress zones, reducing the capacity of the entire group.
Undercut anchors, by contrast, are "stress-free." They lock into the base material without exerting significant outward pressure. This allows them to be installed with much smaller edge distances and anchor spacings, giving designers greater flexibility and enabling solutions in confined spaces where other anchors would fail.
The immense forces transferred through an undercut anchor demand superior materials. The requirement for High Tensile Steel For Undercut Anchors is non-negotiable for handling extreme shear and tension loads. Common materials include Grade 8.8 carbon steel for high strength and A4-70 or A4-80 stainless steel for applications requiring excellent corrosion resistance, such as marine environments or facades exposed to industrial pollutants. The ETA will precisely specify the material grade and any protective coatings (e.g., hot-dip galvanizing) required to meet the 50-year service life expectation.
While high strength is crucial, sometimes ductility—the ability of a material to deform without fracturing—is even more important. This is especially true in seismic applications. For the most demanding seismic category, C2, some undercut anchor designs intentionally use lower-strength, more ductile steel grades (like 4.6 or a specialized 8.8). In the event of an extreme earthquake, a ductile steel bolt will stretch and absorb energy, providing a visible warning of overload while preventing a sudden, catastrophic brittle failure. This "bend-but-don't-break" philosophy is a cornerstone of modern seismic design.
Choosing an anchor is not just about the product; it's about the entire support system behind it. A reputable Undercut Anchors manufacturer provides more than just steel; they provide assurance, traceability, and expert support that are integral to the safety chain.
A key component of the CE marking and ETA process is the requirement for continuous Factory Production Control. This isn't a one-time check. An independent third-party body regularly audits the manufacturer's facility to ensure that every batch of anchors meets the exact specifications outlined in the ETA. This includes verifying raw material quality, manufacturing tolerances, and heat treatment processes. FPC guarantees that the anchor you install today has the same certified performance as the one tested to achieve the ETA.
For critical projects, knowing the full history of your materials is essential. A reliable manufacturer must be able to provide full material traceability. You should expect them to supply material certificates, such as a 3.1 certificate under EN 10204. This document provides specific test results for the exact batch of steel used to make your anchors, confirming its chemical composition and mechanical properties. For the most demanding applications, a 3.2 certificate, which includes third-party verification, may be required. This level of transparency is critical for quality assurance in industries like nuclear power and transportation.
Modern anchor design is complex. A top-tier manufacturer will support its products with robust technical resources. This includes:
Design Software: Look for manufacturers who provide design software that is fully compliant with the latest codes, such as EN 1992-4. This software helps engineers accurately calculate loads and select the correct anchor for their specific application, saving time and reducing the risk of manual error.
Expert Assistance: Access to experienced technical engineers who can answer specific design questions or provide on-site support is invaluable.
Comprehensive Data: All performance data from the ETA should be readily available and easy to interpret.
Not all projects are the same. A good manufacturer will offer a diverse range of undercut solutions to match different substrates and installation methods. This includes:
Self-undercutting vs. Pre-undercutting systems: Self-undercutting anchors create the cavity as they are installed, often simplifying the process. Pre-undercutting (or post-undercutting) systems require a special tool to create the cavity before the anchor is inserted.
Substrate Versatility: Specialized undercut anchors exist for various materials beyond concrete, including natural stone, ceramic panels, and masonry. The manufacturer should offer proven solutions and ETAs for these different applications.
Even the best-designed anchor will fail if installed incorrectly. The reliability of an undercut anchor connection depends heavily on following the manufacturer's prescribed installation procedure. Quality assurance on-site is just as critical as the quality control in the factory.
The two primary methods for creating the undercut cavity have different implications for labor, cost, and tooling. Understanding these differences is key to planning a successful installation.
| Feature | Self-Undercutting Anchor | Post-Undercutting Anchor (Pre-undercutting) |
|---|---|---|
| Tools Required | Standard rotary hammer drill; no special bits. | Standard drill bit plus a special undercutting tool/bit. |
| Installation Speed | Faster; drilling and undercutting can be a single process. | Slower; requires a separate step to create the undercut. |
| Skill Level | Generally lower skill requirement, as the anchor does the work. | Requires trained operatives to use the undercutting tool correctly. |
| Cost Profile | Higher anchor unit cost, but lower labor and tooling cost. | Lower anchor unit cost, but requires investment in special tools and training. |
| Ideal Application | Projects with many anchors where speed and simplicity are paramount. | Specialized applications or when using very large diameter anchors. |
How can you be sure the undercut has been properly formed and engaged? Many advanced undercut systems incorporate a visual verification feature. A common example is a "red ring" or a similar colored indicator on the anchor sleeve. When the anchor is correctly set, this ring becomes visible, providing an immediate, simple, and foolproof check for the installer and site supervisor. Other systems rely on depth gauges to confirm the undercutting tool has reached the correct depth, ensuring the cavity geometry meets the ETA specification.
Precise torque application is critical. However, its role in an undercut anchor is different from that of an expansion anchor. For an expansion anchor, torque directly generates the frictional holding force. For an undercut anchor, the initial torque is primarily used for "setting" the anchor—expanding the sleeve into the pre-formed cavity. Once the sleeve is locked in place, the anchor's tensile capacity is derived from the mechanical interlock, not from sustained torque. It is vital to use a calibrated torque wrench and apply the exact torque specified in the ETA. Over-torquing can damage the anchor, while under-torquing may fail to engage the locking mechanism properly.
Despite their reliability, installation errors can still lead to failure. Two common risks to watch for are:
Improper Hole Cleaning: After drilling, the hole must be thoroughly cleaned of dust and debris using a brush and blow-out pump, as specified in the instructions. Debris left in the hole can prevent the anchor from reaching its full depth or stop the undercutting mechanism from fully engaging, leading to a drastic reduction in load capacity.
Drill Bit Wear: Using a worn drill bit can result in an undersized hole. This can make it difficult to insert the anchor or prevent the undercutting tool from functioning correctly. Regular checks of drill bit diameter against a gauge are a simple but effective quality control measure.
While ETA-approved undercut anchors often come with a higher price tag than non-certified fasteners, viewing them solely on upfront cost is a mistake. The true value lies in risk mitigation, long-term performance, and total cost of ownership over the project's lifecycle.
A structural failure is one of the most catastrophic events on a construction project, leading to immense repair costs, legal liability, and irreparable damage to reputation. The premium paid for an ETA-approved anchor is essentially an insurance policy against this risk. The rigorous testing behind the ETA for Undercut Anchors provides a level of performance certainty that commodity fasteners simply cannot match. For any connection where failure could endanger lives or cause significant economic loss, the choice is clear.
Many regional codes and standards, such as the UK's BS 8539, recommend on-site pull-out tests to verify the performance of anchors, especially when using non-certified products. These tests are time-consuming and expensive, requiring specialized equipment and personnel. A major financial benefit of using an anchor with a relevant ETA for the specific application and substrate is that this requirement is often waived. The ETA provides all the necessary, statistically validated performance data, rendering costly on-site proof testing redundant, saving both time and money on the project schedule.
The 50-year design life assessed in an ETA provides confidence in the long-term durability of the fixing. The mechanical interlock of an undercut anchor is not susceptible to the "creep" or relaxation that can sometimes affect friction-based or adhesive anchors under sustained load. This reliability reduces the need for costly and disruptive inspection cycles, especially in harsh environments. For structures exposed to C4 or C5-M corrosive zones (e.g., coastal or industrial areas), specifying an ETA-approved anchor made from A4 stainless steel ensures the connection will last, minimizing future maintenance liabilities.
In today's risk-averse construction landscape, Tier-1 contractors, engineering consultants, and project insurers increasingly mandate the use of ETA-approved products for all safety-critical fixings. A "Category 1" fixing, as defined by many industry bodies, is one where failure would be critical. Specifying and installing ETA-certified anchors demonstrates due diligence and adherence to best practices. This can lead to more favorable insurance premiums and protects all parties—from the designer to the installer—from potential legal challenges in the event of a problem.
The European Technical Assessment is far more than a certificate; it is a comprehensive framework for engineering clarity, performance assurance, and legal protection. For undercut anchors, the ETA validates their superior mechanical interlock mechanism, providing designers with predictable, reliable data for the most demanding applications. When the integrity of a structure and the safety of its occupants are on the line, prioritizing the proven performance of a mechanical lock over a friction-based connection is a fundamental principle of responsible engineering. As a final step, always review the specific Annexes of the anchor's ETA document before finalizing a specification. This ensures every detail, from installation torque to edge spacing, aligns perfectly with the proven capabilities of the product.
A: It is strongly discouraged and often prohibited by local building codes and industry standards like BS 8539. Using non-ETA anchors for safety-critical connections exposes the designer, specifier, and installer to significant legal liability. The ETA provides verified performance data that is essential for safe design, and its absence means the anchor's behavior under load is unpredictable.
A: C1 and C2 are seismic performance categories in an ETA. C1 is for non-structural elements (e.g., pipes, cable trays) and requires the anchor to withstand seismic actions without failure. C2 is for structural elements and is much more stringent. It requires the anchor to have sufficient ductility to handle significant movement and cracking in the concrete during a major seismic event without brittle failure.
A: ETAs are issued with a specific validity period. However, the system has transitioned from the old ETA guidelines (ETAGs) to European Assessment Documents (EADs). ETAs based on ETAGs remain valid until they expire. New assessments are now done against EADs. It is crucial to check that the ETA for a product is current and has not been withdrawn.
A: No. There are two main types. Self-undercutting anchors create the cavity as they are being installed, typically with a standard drill. Post-undercutting anchors require a separate step where a special tool is used to ream out the bottom of the pre-drilled hole to create the cone-shaped cavity before the anchor body is inserted.
A: The geometry is critical. The angle and depth of the undercut directly influence the size of the "concrete cone" that is engaged when a tensile load is applied. A larger, properly formed cavity creates a larger bearing surface, leading to a higher pull-out capacity. The ETA testing process rigorously validates this geometry to ensure the anchor can resist the characteristic concrete cone failure mode predicted in design calculations.
