Advantage
5 Core Advantages of Hammer Drive Anchors:
1. Rapid Installation
Pure hammer-driven installation—no torque tools, chemical curing, or complex equipment required.
Single anchor installed in under 30 seconds, ideal for batch operations and time-sensitive projects.
2. Immediate Load-Bearing Capacity
Instant anchoring force after hammering—no curing wait (vs. chemical anchors requiring hours).
Ready for loading immediately after installation, critical for emergency repairs/fast-track construction.
3. Cost-Effectiveness

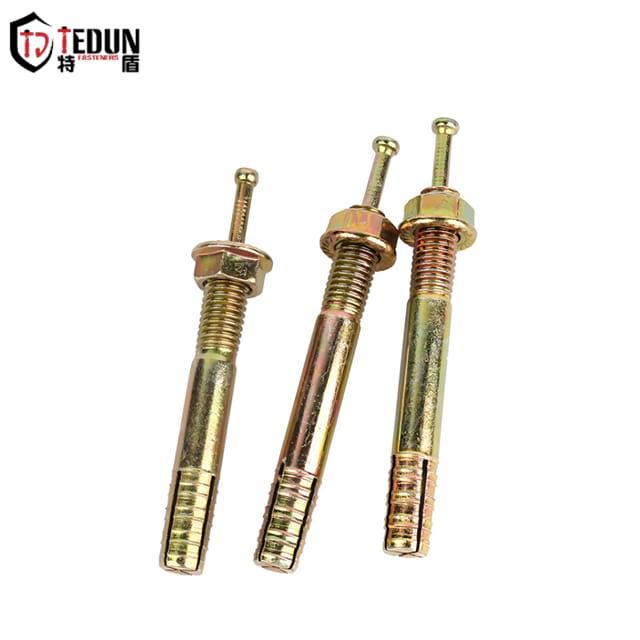

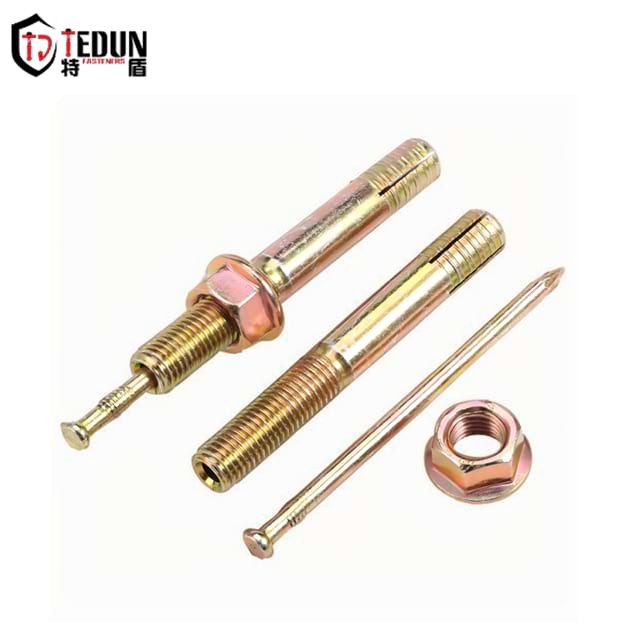

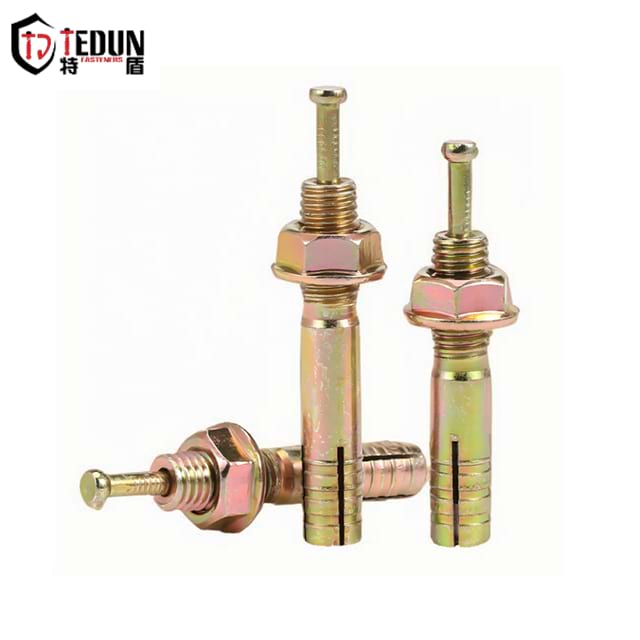

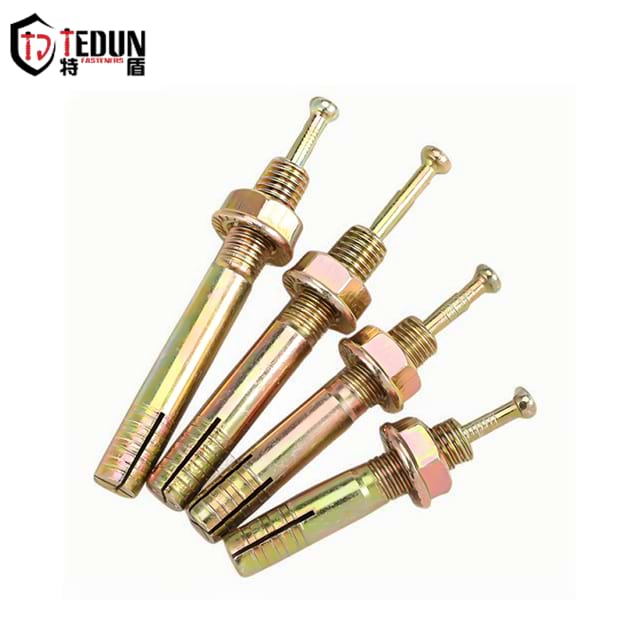

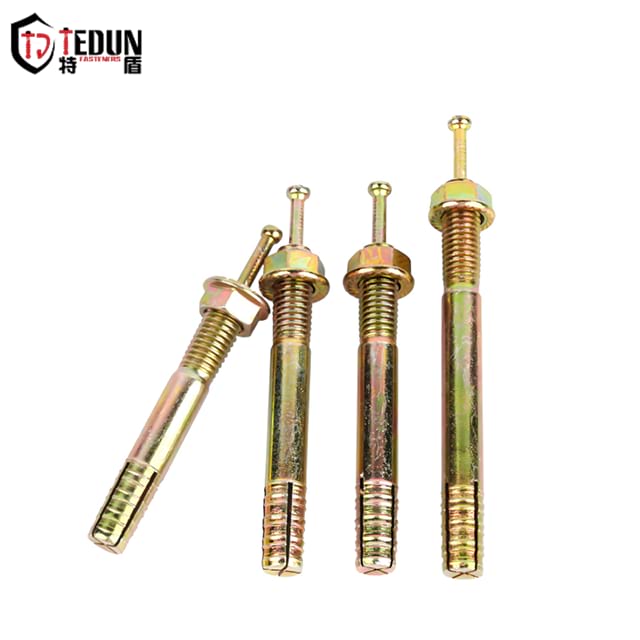

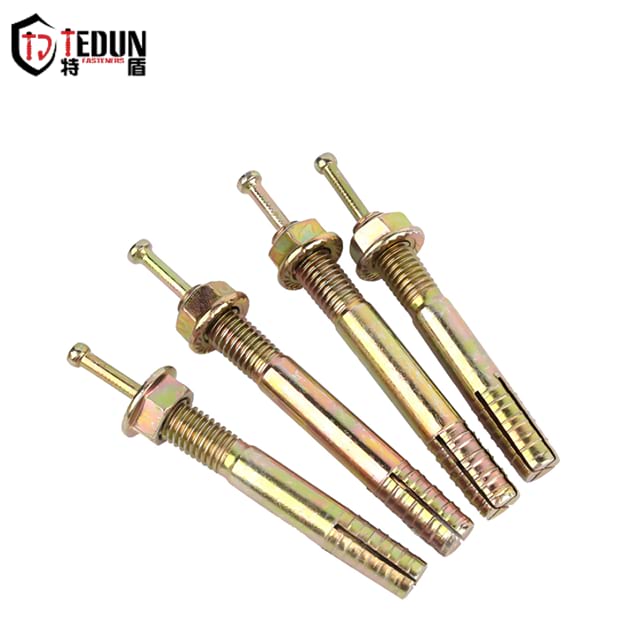

Simple design (expansion sleeve + tapered pin) with lower material costs than chemical/undercut anchors.
Eliminates consumables (e.g., injection guns, mixing nozzles); only hammers and drills needed.
4. Ease of Use & Reliability
Standardized steps: Drill → Clean → Insert → Hammer (minimal training required).
No complex parameters (e.g., adhesive dosing, curing monitoring), reducing human error risks.
5. Versatility
Material options: Galvanized steel (standard), stainless steel A2/A4 (corrosive environments), nylon (insulation/light loads).
Size flexibility: Diameters from M6 to M20+, covering small-to-medium load applications. Critical Prerequisites:
Substrate dependency: Only for solid concrete ≥ C25/dense stone—advantages void otherwise!
Installation discipline: Strict adherence to hole size/depth/cleaning/hammering technique is mandatory.
Summary: Hammer drive anchors excel in cost, speed, and simplicity for medium-to-low load fixes (e.g., brackets, shelving, equipment bases) on qualified substrates. Their value hinges entirely on strict compliance with installation standards.
Application
Hammer-driven anchors, valued for their quick installation, immediate load-bearing capability, and cost-effectiveness, are widely used in solid and robust base materials such as concrete, stone, or dense masonry. They are particularly suitable for the following applications:
1. Building Structure & MEP Installation:
Pipe & Cable Tray Support: Installing supports (hangers/brackets) for water pipes, ductwork, fire sprinkler pipes, cable trays, and busways onto concrete beams, columns, slabs, or walls. This is the most classic and high-frequency application.
Equipment Base Anchorage: Securing the baseplates or anchor bolts for small to medium-sized MEP equipment (e.g., pumps, fans, HVAC units, electrical panels, control cabinets). Load capacity must be verified.
HVAC Systems: Installing duct hanger rods, diffuser supports, and equipment support components.
Fire Protection Systems: Fixing fire sprinkler pipe supports, fire hose cabinet brackets, and alarm equipment bases.
2. Steel Structure Connection & Supplementary Fixing:
Non-Primary Structural Connections: Temporarily or permanently anchoring small steel components (e.g., platform railing post bases, ladder fixings, equipment support frames, canopy connection plates) to concrete foundations or walls.
Temporary Fixation of Precast Elements: Occasionally used for temporary stabilization and alignment of precast concrete wall panels, stairs, etc., during lifting and positioning. (Final connections typically use more reliable embedded plates or undercut anchors).
3. Architectural Finishes & Curtain Wall (Requires Careful Evaluation):
Post-Installed Curtain Wall Anchors/Adapter Plates: Used to secure post-installed anchor plates or adapter plates for curtain walls when pre-embedded parts are missing or misaligned in the primary structure. Requires strict load calculation, verification of base material strength, and compliance with edge/spacing requirements. Critical projects often prefer undercut or chemical anchors.
Interior/Exterior Decorative Elements: Fixing large signage, advertising lightbox frames, awning brackets, trim profiles, and suspension rods for transfer layers in grid ceilings (not primary runners).
Handrail/Railing Installation: Securing the bases of metal or glass railing posts for stairs, balconies, and platforms. Must meet pull-out strength requirements.
4. Industrial Facilities & Plant Construction:
Production Line Equipment Fixing: Installing brackets for non-high-precision, non-high-vibration machine tools, conveyor supports, and operating platform legs on solid concrete floors or equipment foundations.
Racking System Anchorage: Anchoring medium-duty storage racks (especially the base uprights of drive-in racks or narrow-aisle racks) to concrete floors to prevent overturning. (A common solution for rack anchorage).
Platform & Ladder Installation: Securing anchor points for steel platforms, walkway grating, and fixed ladders (vertical/inclined).
Small Tank/Vessel Support: Fixing baseplates for supports of non-large, non-hazardous material storage tanks/containers.
5. Municipal & Infrastructure (Specific Conditions):
Traffic Facilities: Installing supplementary fixings for road signs, small signal light pole bases, and small camera pole bases. (Primary uplift resistance often relies on deeper foundations or flange bolts).
Tunnels & Utility Tunnels: Fixing cable trays, small pipe supports, and lighting fixture bases onto tunnel linings or concrete sidewalls/ceilings of utility tunnels. Concrete quality and density must be noted.
6. Other Common Applications:
Temporary Structure Fixing: Connecting exhibition booths, temporary fencing, and portable buildings to the ground.
Solar Mounting Installation: Used in some small-scale or ground-mounted PV systems to fix mounting rails or post bases to concrete foundations or parapet copings on roofs. Roof applications require special attention to waterproofing and base material load capacity assessment. Mainstream solutions include specialized mounts or chemical anchors.
Interior Partition Fixing: Anchoring the bottom fixings of heavy-duty steel partitions or screens to concrete slabs.
